campusCOUNTdown

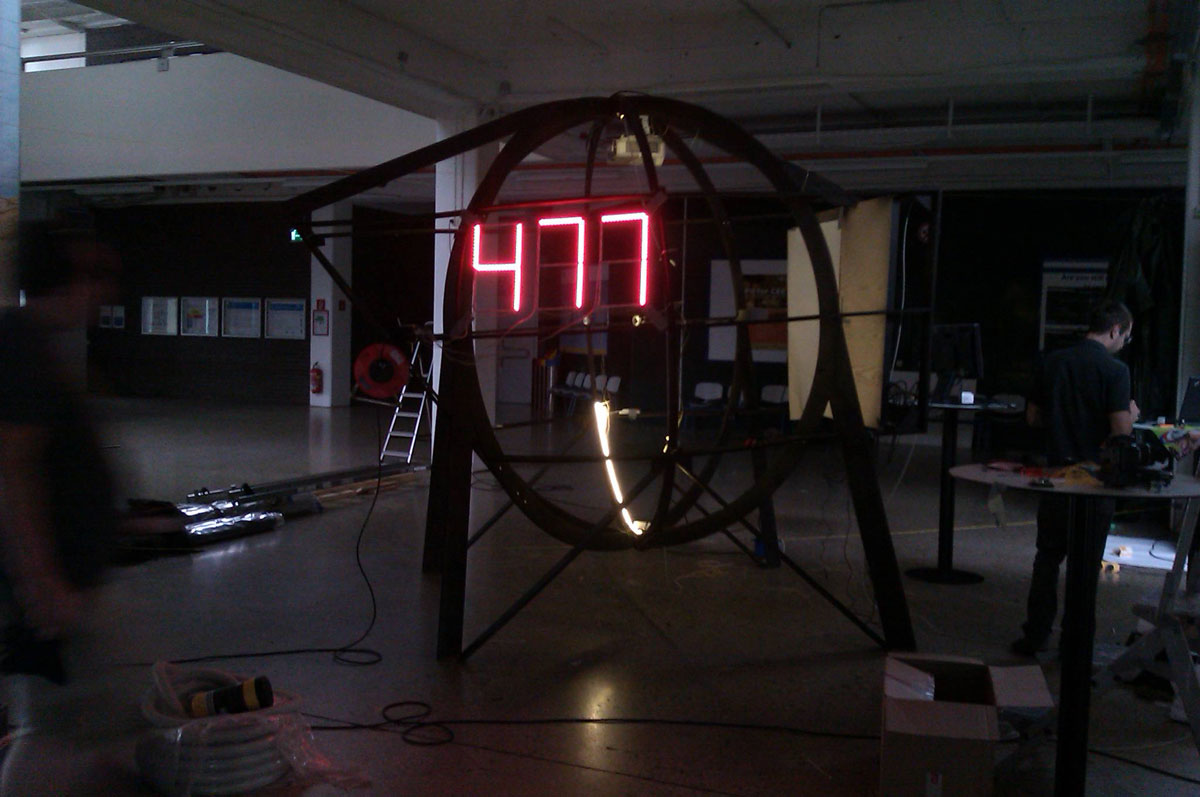

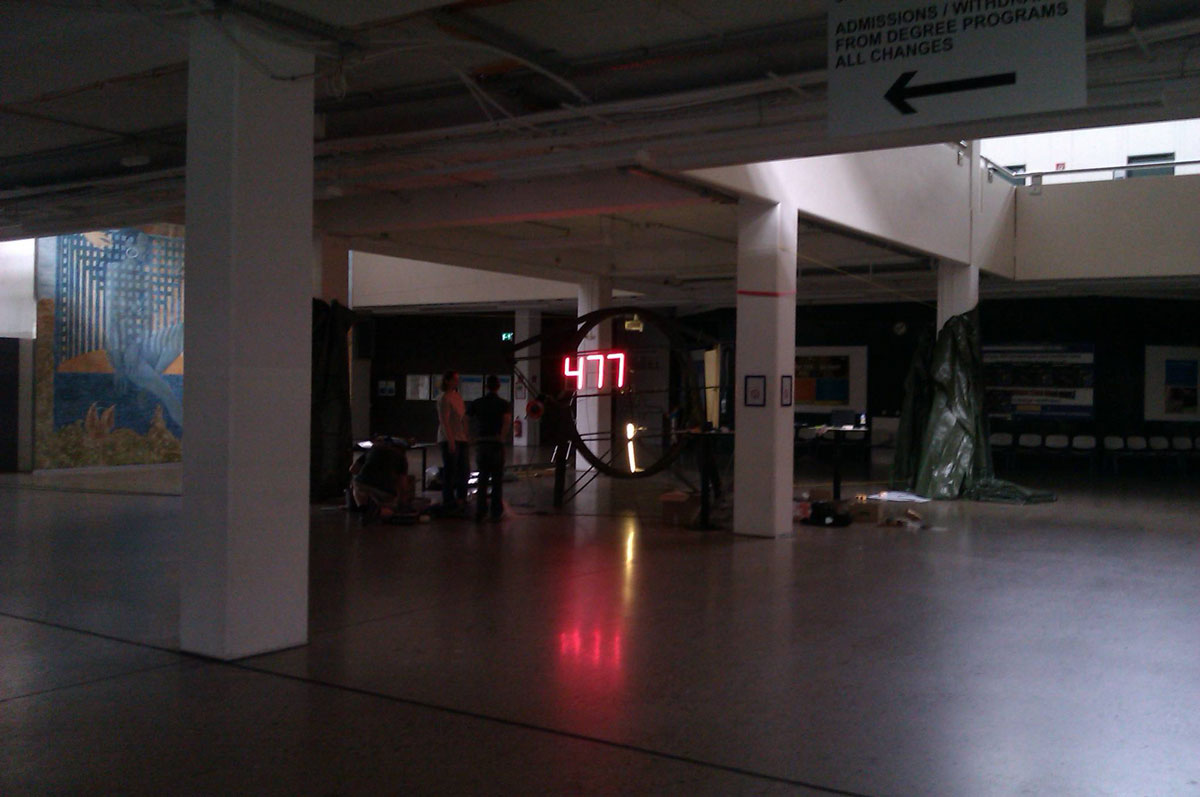

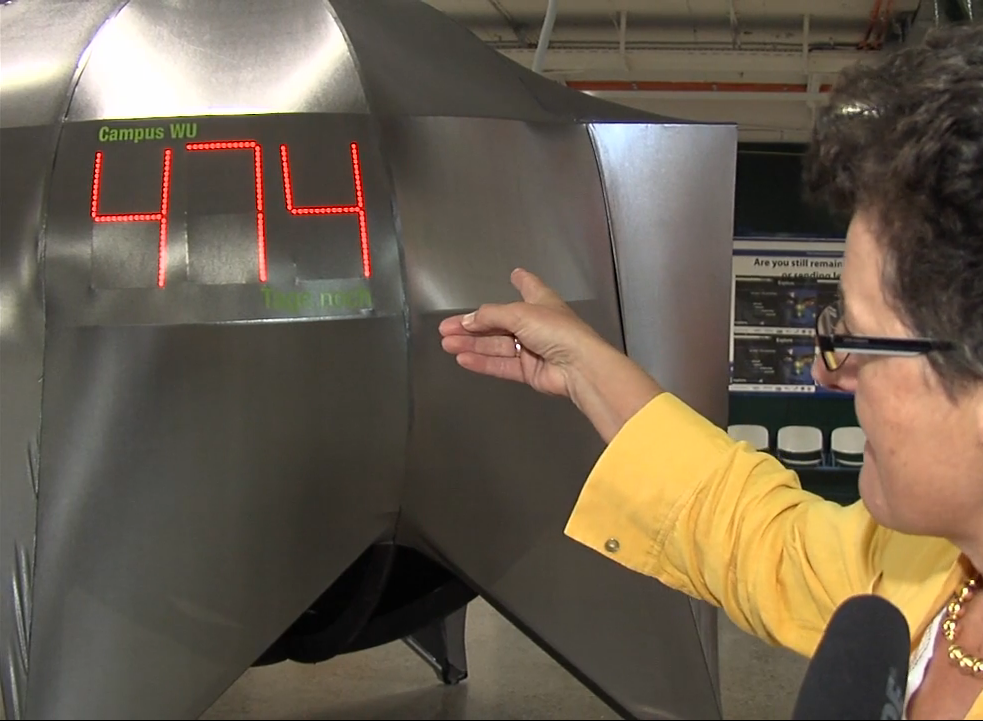

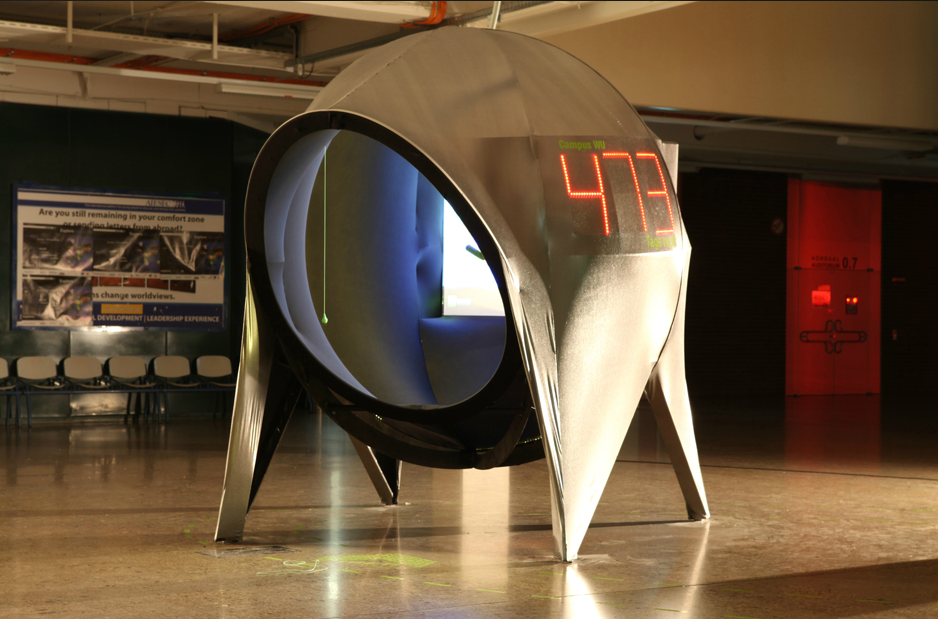

Das Büro für offensive Aleatorik (boanet.at) hat uns beauftragt den LED Counter für die Medieninstallation Zeitmaschine campusCOUNTdown in der Wirtschaftsuniversität Wien zu konzipieren und umzusetzen. Der neue WU Campus ist am entstehen und der Counter soll die Tage bis zur Eröffnung und Übersiedelung in den neuen WU Campus anzeigen. Die Umsetzung haben wir mittels roten LED Stripes und einer selbst entwickelten Ansteuerungsplatine in Form einer Siebensegmentanzeige realisiert.

German
Untertitel:
LED Counter Design – 14.6.2012 - 14-6.2013
Technologie & Materialien:
Jahr:
2012

Bodyscapes_corpoPhonolux

“Bodyscapes_corpoPhonolux” is a multidimensional interactive installation connecting synaesthetically the visual and spatial sense with hearing.

The basic idea of this project is the translation of light into sound – to transform what we see simutaneously in an acoustic soundscape. The performer becomes “sensor” and interactive element at the same time. Along the dancer‘s body are 8 lightsensors installed, measuring steadily the various intensities and colours of light on selected points along the body surface (joints, head, etc…).

The dancer is passing through different light situations. Sensors are influenced by way and quality of movement in space, plasticity of the body and different lighting and projection ambiances by the surrounding structure. The symbiosis of movement and different lighting situations are the two equal „masters“ of the composition. As if someone is playing the piano, the dancer is playing the “space” with his body like an instrument – like an orgue of movement, with each sensor equally tuned. Finally the performance on stage becomes a 3dimensional improvisation between the lighting design and the dancer. Each gesture can be heard. One major factor is the spatial distribution of loudspeakers in a 360° area around the spectator. Each sensor is directly linked to one loudspeaker, so the acoustic output of each single sensor can be directly assigned within space for the spectator. Therefore the soundscape becomes a direct acoustic illustration of the body’s surface in space.

Idea/Choreography/Performance: Veronika Mayerböck Sound/Composition: Noid IT/Multimedia:Simon Laburda Photocredits: Konstanze Mayerböck, Monika Perner

German
Untertitel:
Multidimensional interactive sensor installation.
Technologie & Materialien:
Jahr:
2011

Hörverbindung zur Quelle

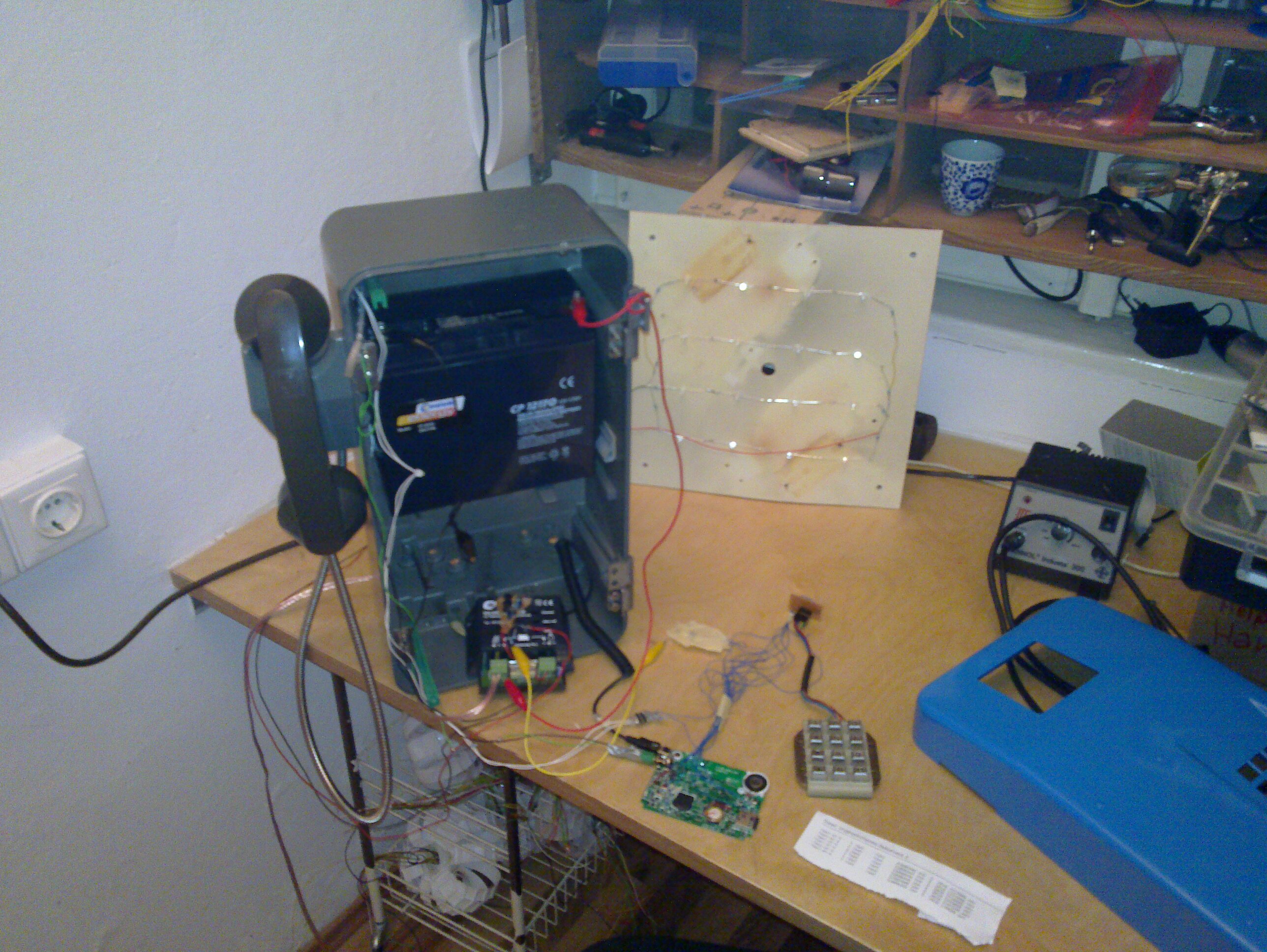

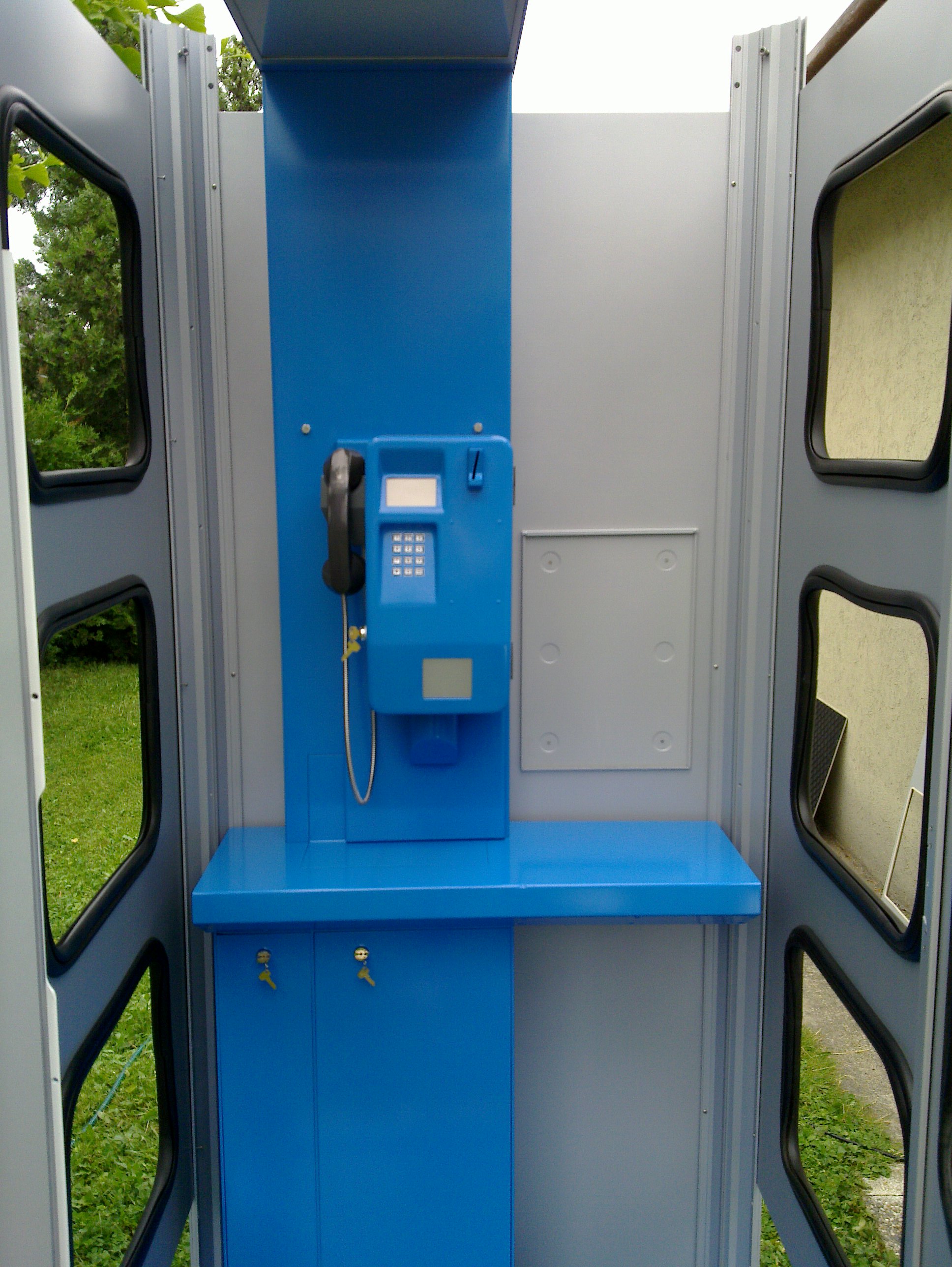

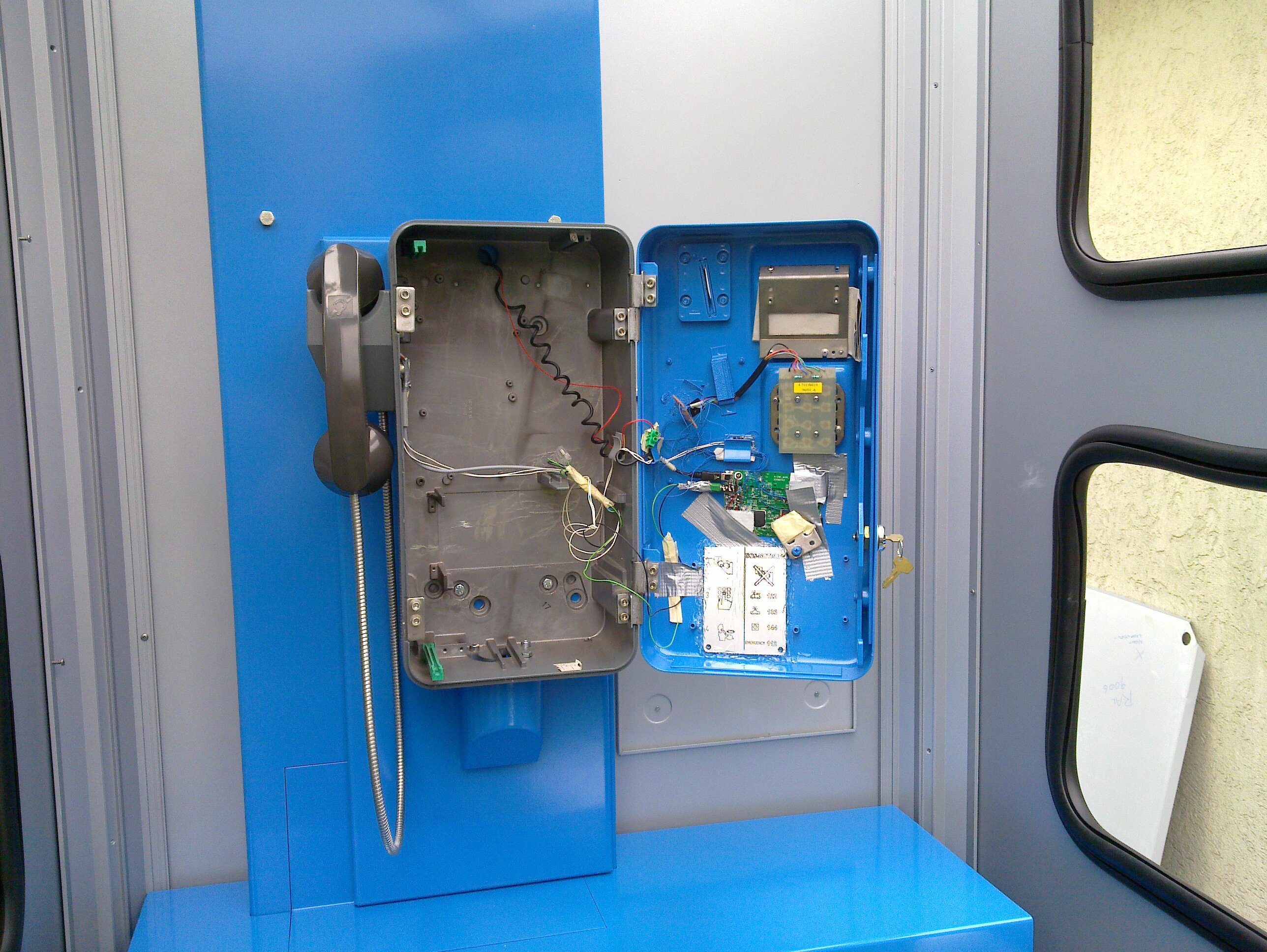

The project “Hörverbindung zur Quelle” is an art project by Katarina Hinterlechner. It consists of a modified phone booth which allows users to listen to the gurgling noise of the different fountains that make up Vienna's water supply.

This project was part of the centenary celebration for Vienna's water main supply. More Details can be found on this website (in German).

Planning, organization and mechanical construction by Katarina Hinterlechner and Christian Deschka,
Hardware and software engineering by Simon Laburda

German
Untertitel:
programming, interactive design
Jahr:
2010

Maybach prototype LED-Matrix

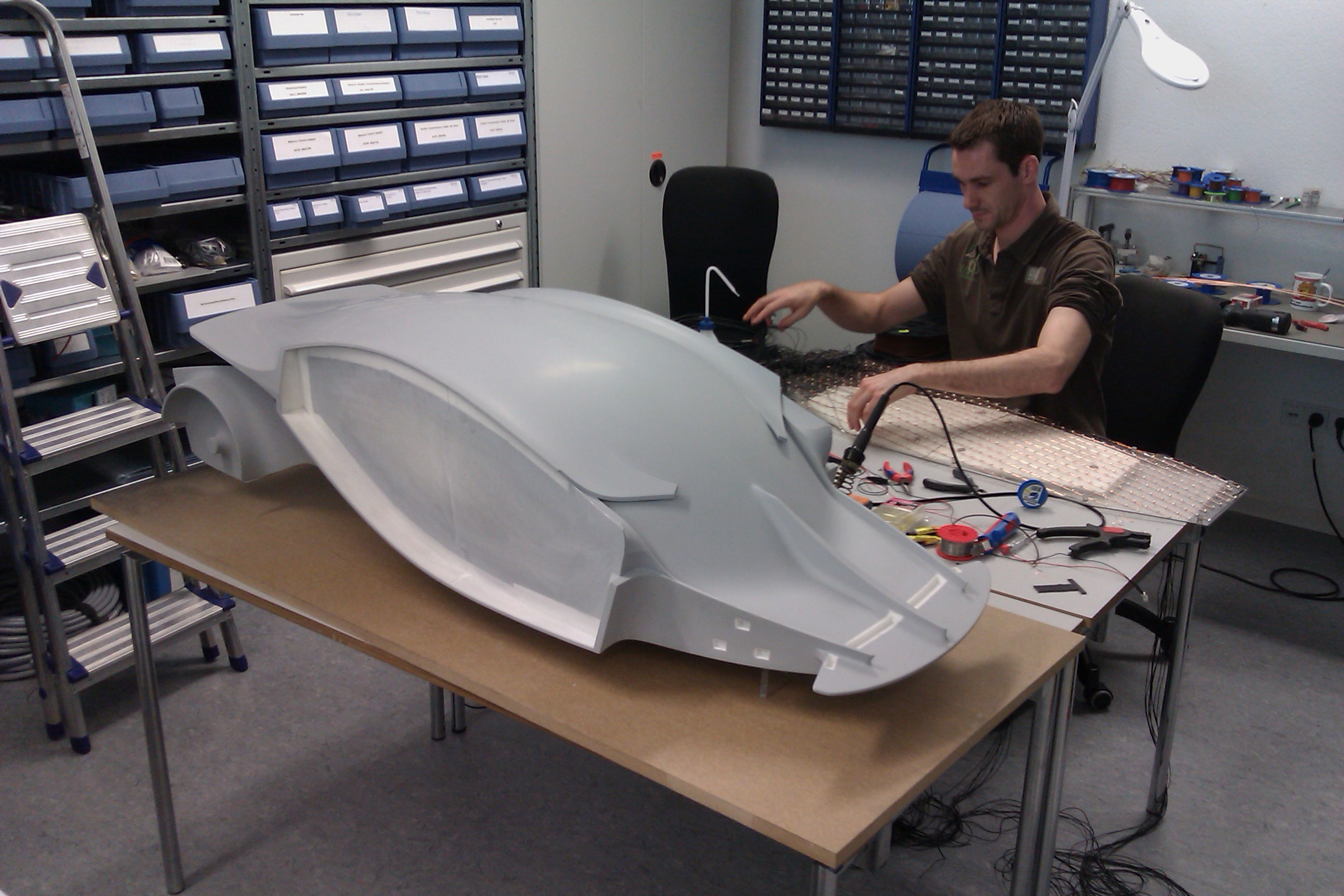

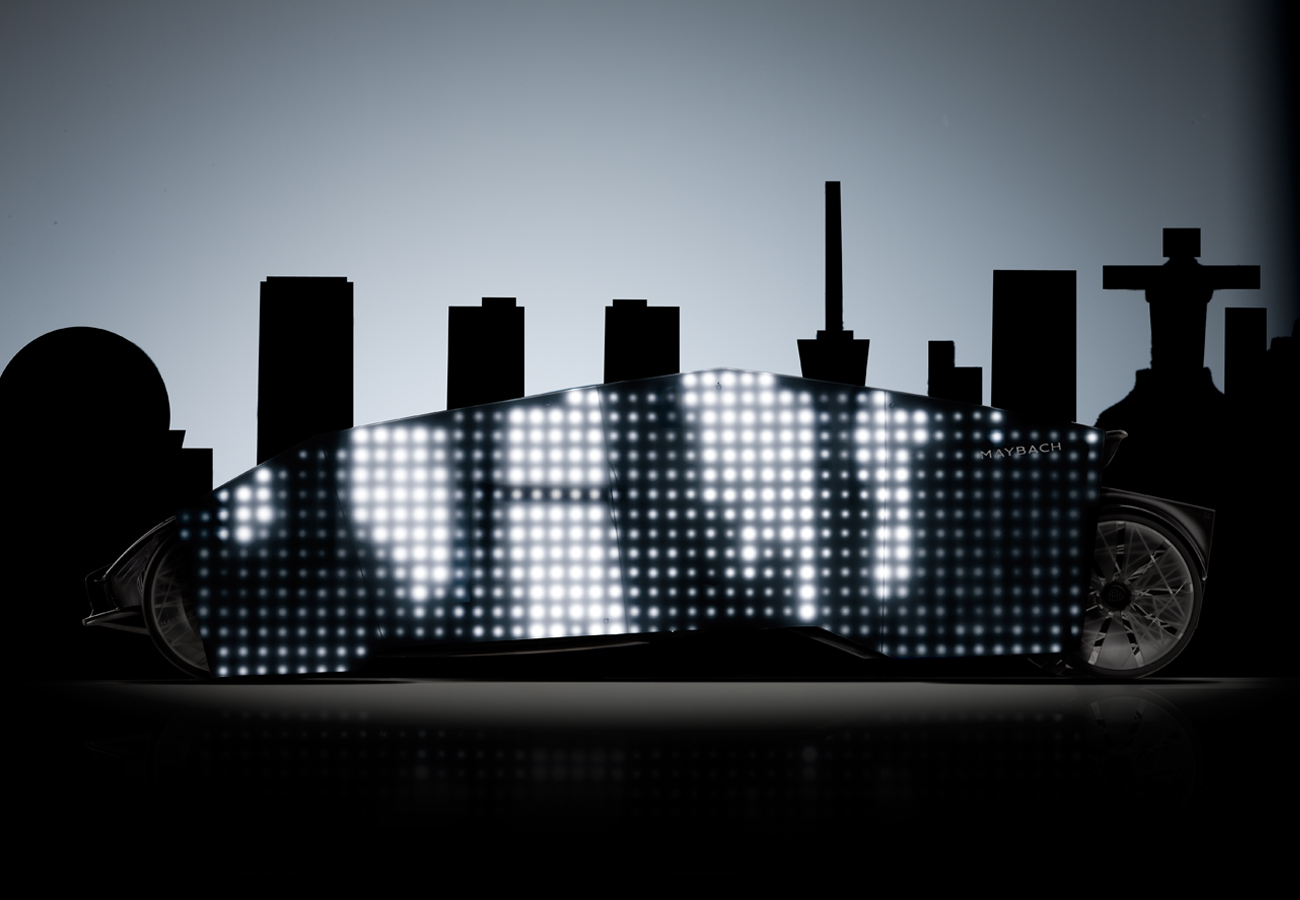

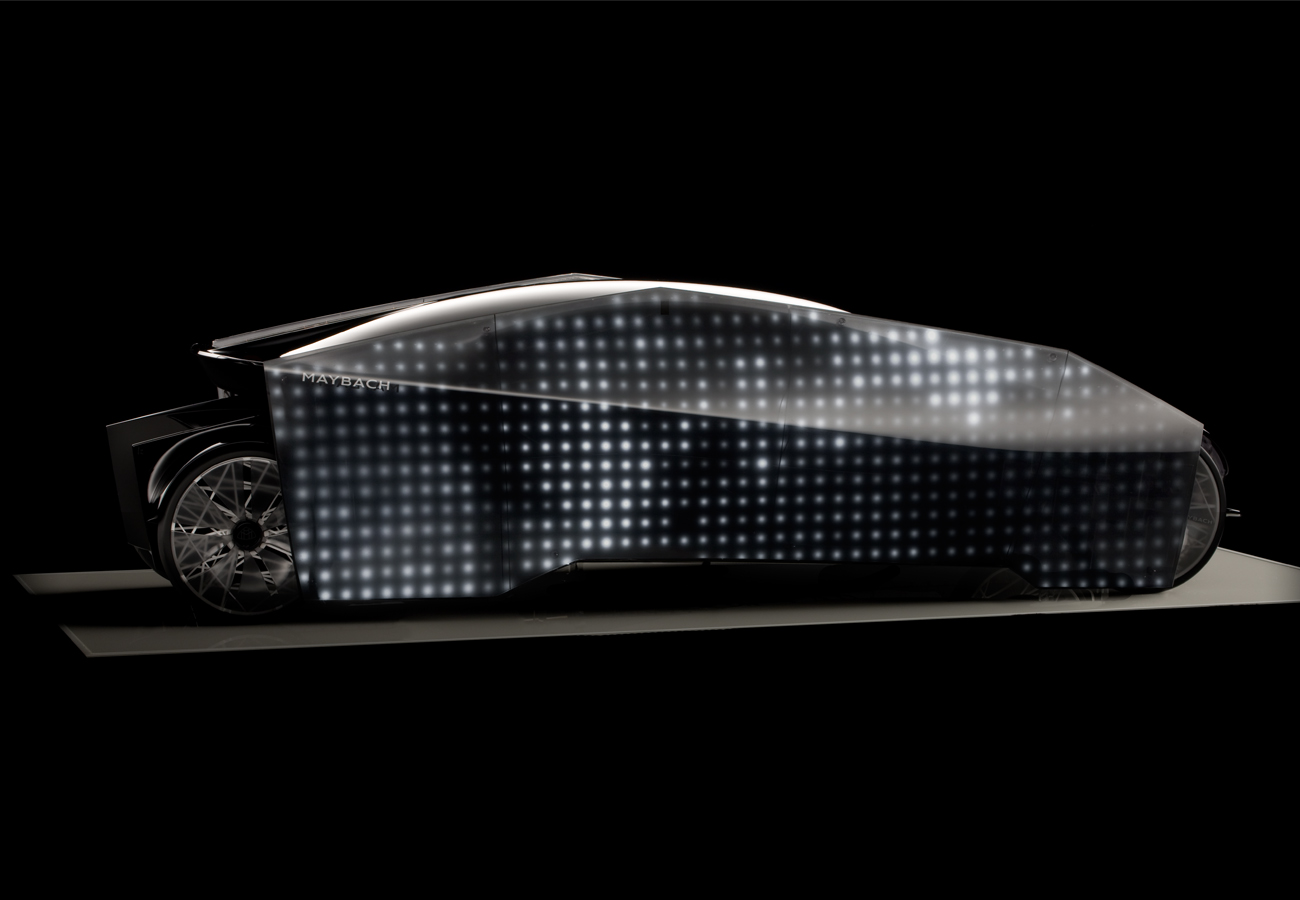

We were contracted by Areus Engineering to develop a control system for a passive LED matrix of up to 768 white LEDs (48x16 pixels). The LED-matrix was attached to a scale model of the prototype for a Maybach car. The idea of Michal Plata was to make the car sort of invisible by recording video from one side with a webcam and projecting it to the other side. (If you've seen the James Bond movie "Die Another Day", you'll know what I mean ;) ). "sort of invisible" because of course with blocky 48x16 pixels and no colors you could never do an accurate representation....

The LED control-system should be able to receive pixeldata from an attached PC and do 16 shades of gray. With this configuration our system managed to display 15fps with a refresh rate of up to 100Hz. The pixeldata came from a webcam attached to a Linux Netbook. On this computer the image was scaled an dedistorted using OpenCV and transferred to the LED-screen using ledbridge.

The controller had to drive the 15mA rated LEDs at 240mA to achieve the full brightness while scanning through the 16 rows, yet never stop scanning the matrix because that would burn out the LEDs instantly! Achieving the high frame- and refresh-rate with the ATMega32 was a difficult task, I had to think of an optimized framebuffer layout to decode the incoming pixeldata to in order to achieve the high refresh rate. Also I had to use assembler because with C the required performance just can't be reached.



Video ´the invisible Maybach´ by Michal Plata, 2010

German
Untertitel:
control system for a passive LED matrix
Technologie & Materialien:
Jahr:
2010

The Lighthead Projekt

The Lighthead Projekt consists of a number of semitransparent helmets. A single helmet contains a 433 MHz Receiver, a microcontroller and very bright leds.
We controlled it by using processing running on a small linux machine directly hooked into the audiomixer.
Developed for Katarina Hinterlechner and Christian Deschka

Performance Brut Wien, 2009

German
Untertitel:
visual beat detection
Technologie & Materialien:
Jahr:
2009

The MHE-Cube

The cube MHE-Cube was my first LED art project. It was a gift from a number of employees at Statistics Austria to new founded company MHE & Partner. The cube form was chosen because that company was working with "OLAP Cubes" which is a form of representing data in a three-dimensional table (sort of...).

The cube itself was built by Helmut Stenitzer und Eva Fischer. The electronics inside by me (Simon).

Once plugged in, the microcontroller on the board lights the LEDs in various patterns. Also, a 1 GB USB-Stick is included which can be accessed by the PC connected to it. This way the cube can actually store data ;)

The light effects software is available here: avrlighteffects.tar.gz (README included). It works on an AVR microcontroller as small as the ATTiny26 and it's controlled by a simple scripting language. Light effects for up to 8 channels can be designed and previewed on the PC and then flashed onto the microcontroller.

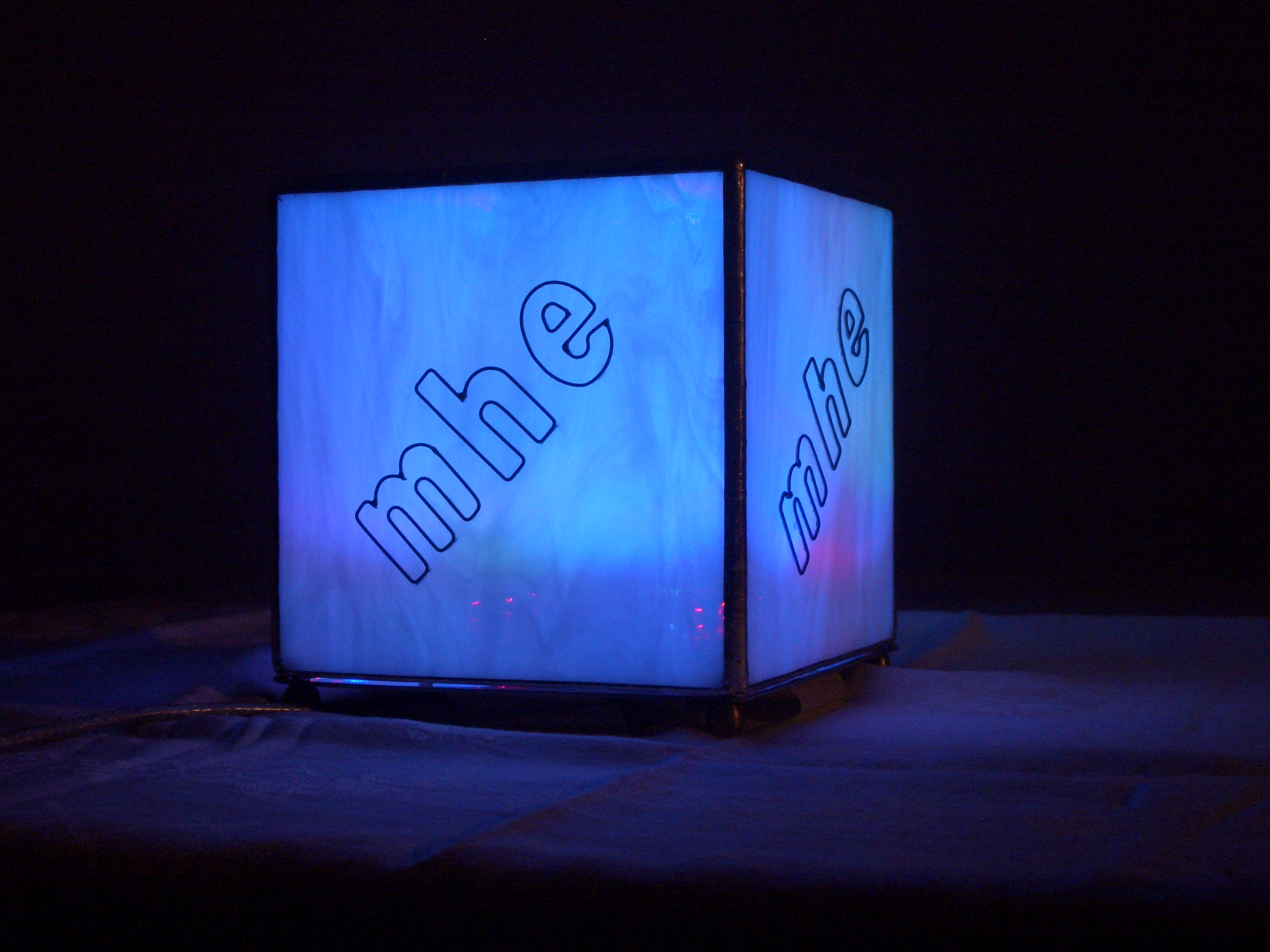

Here's a video of the finished cube:

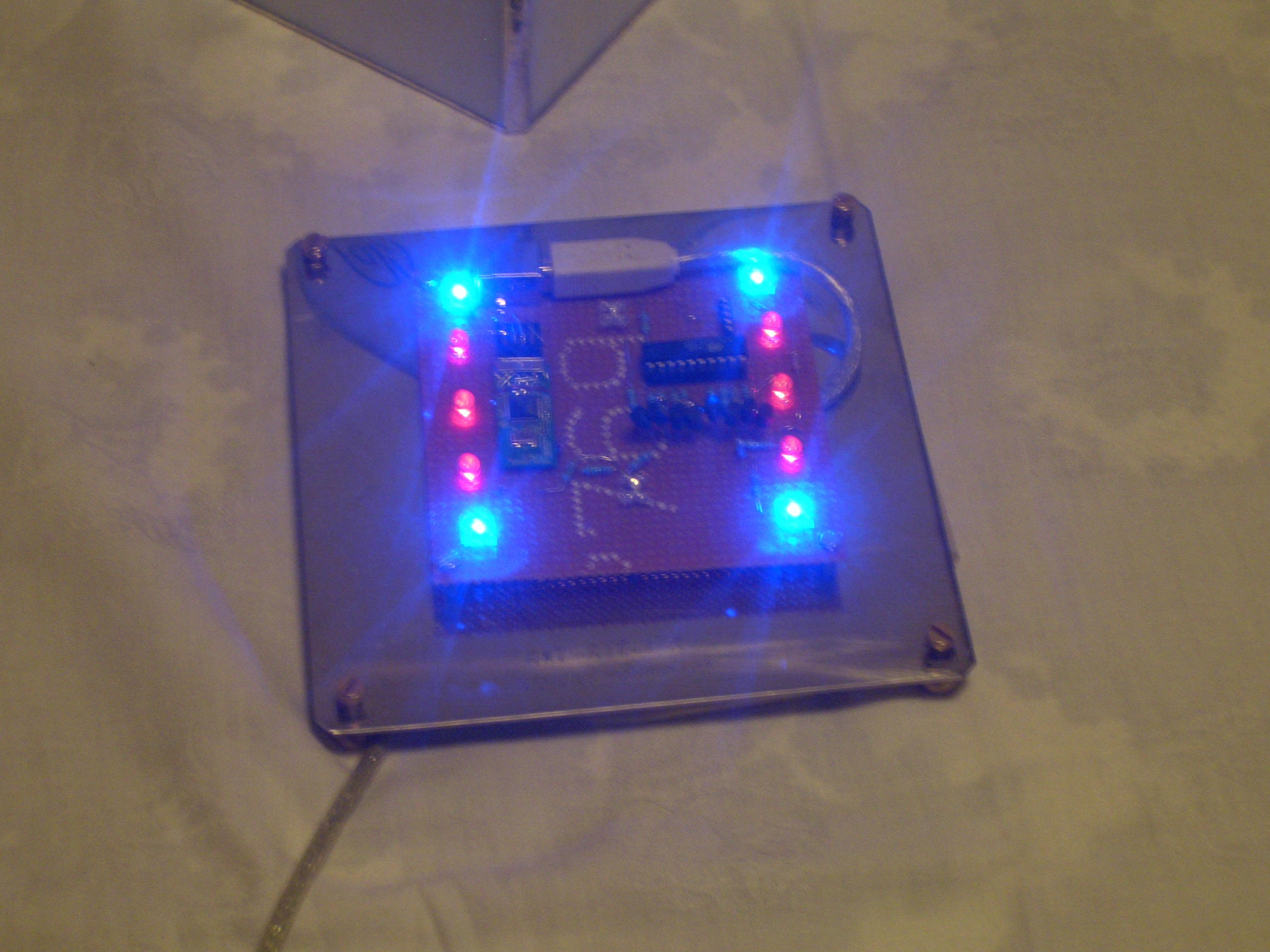

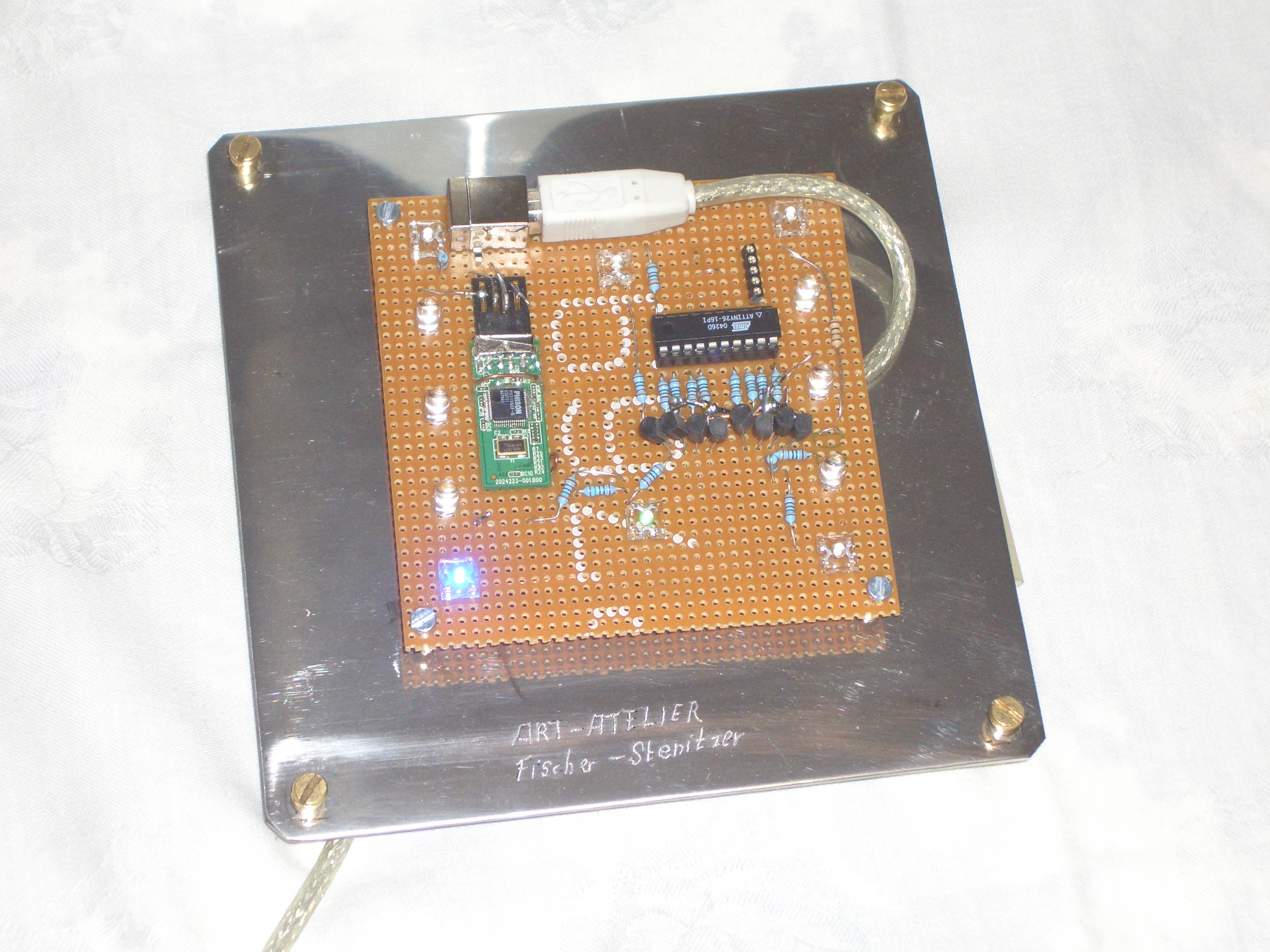

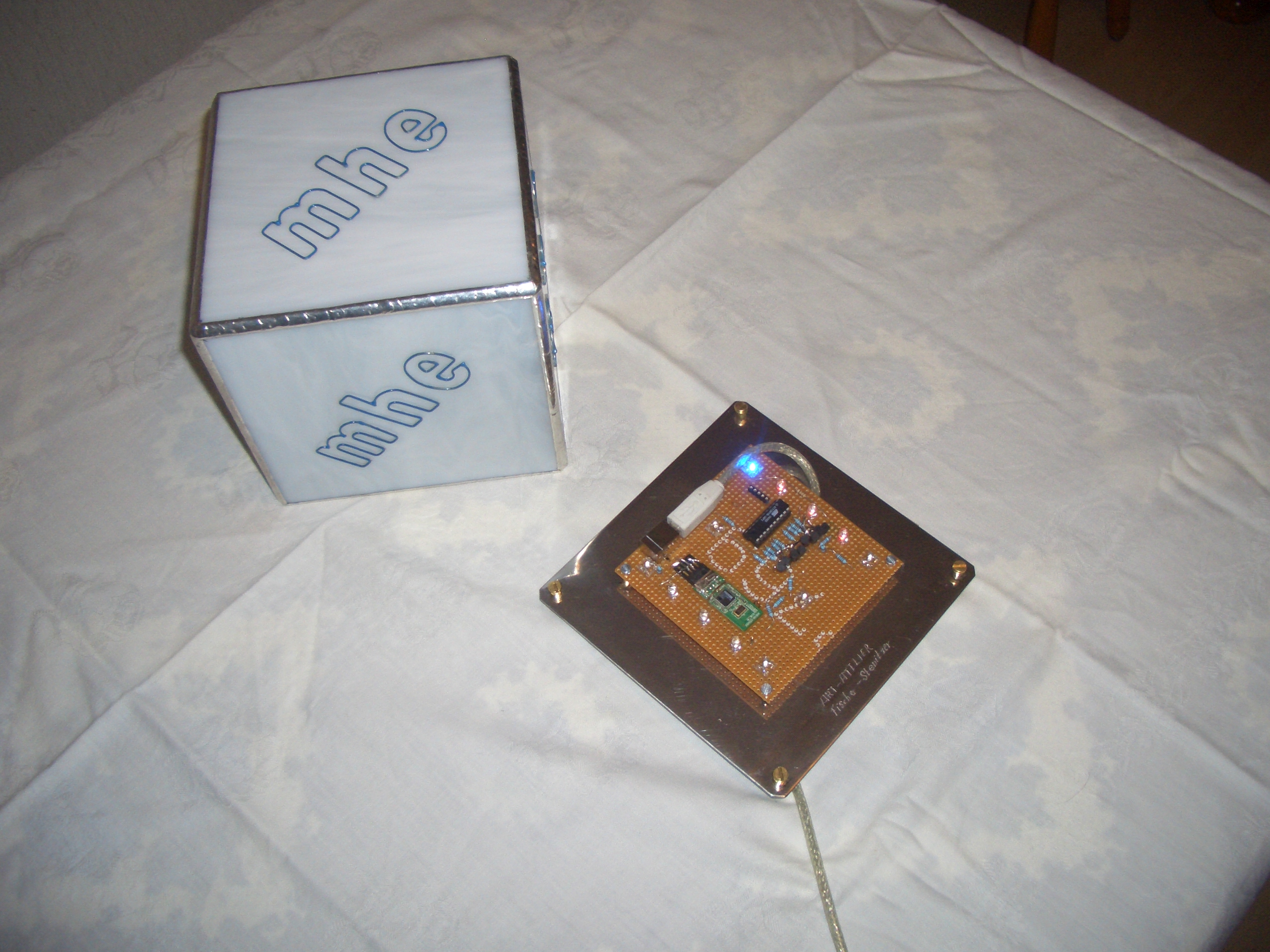

And here you can see the opened board:

German
Untertitel:
The cube MHE-Cube was my first LED art project.
Technologie & Materialien:
Jahr:
2007
